Bafang USB CAN-Bus Programming Cable for BBS01/BBS02/BBS03/BBSHD Mid-Drive E-Bike Motor

Description

1. Product Information

– Name: Bafang Mid-Drive Motor USB Programming Cable

– Applicable Products: Bafang BBS01/02, BBSHD mid-drive motors

– Weight: 20g

2. Features

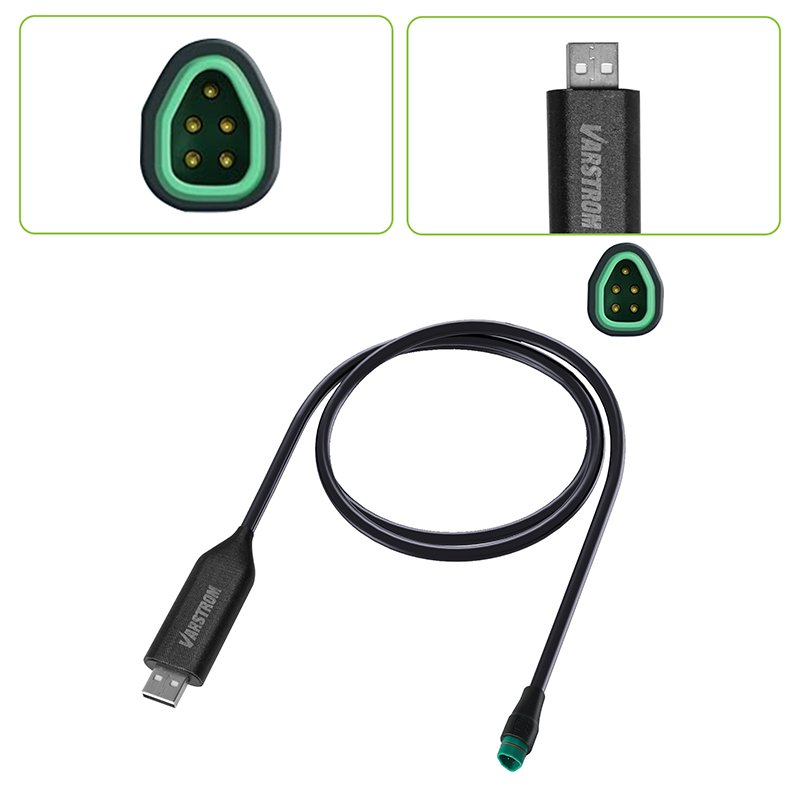

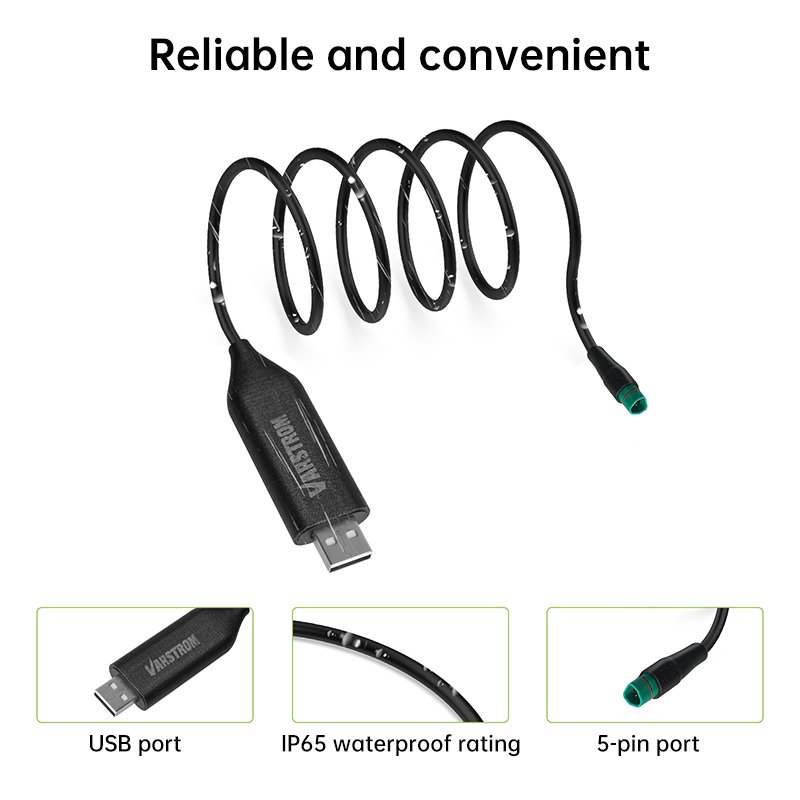

– Interfaces: 2.0 USB interface and 5-pin female connector.

– Chip: High-performance chip adopted, ensuring fast and stable transmission.

3. Function Descriptions

– Basic Settings: Include controller current limiting, low-battery protection voltage, current limiting and speed limiting settings for each gear, etc.

– Assist Settings: Cover speed limit, assist startup current, assist startup delay level, rated current, etc.

– Pure Electric Settings: Involve speed limit, startup current, switching between speed mode and follow-electric mode, setting of the minimum and maximum voltage of the throttle, etc.

4. Customization & Support

– Adjustment Options: Each gear's startup speed and speed (within the motor's achievable speed range) can be adjusted according to personal preferences. It can also be set to energy-saving mode or power mode based on personal usage scenarios. However, for the motor's service life, it is recommended not to set too high current limits to better protect the motor.

– Additional Support: For detailed setting steps, please refer to videos. The software package, setting steps can be provided by contacting customer service.
